• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Pickup box
• Air cleaner, high-capacity
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Trailer brake controller, integrated
• Recovery hooks, front, frame-mounted, black
• Frame, fully-boxed, hydroformed front section
• Underbody Shield, frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case
• Chassis, single rear wheel
• Steering, Recirculating ball with smart flow power steering system
• Steering, Digital Steering Assist
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Exhaust, aluminized stainless-steel muffler and tailpipe

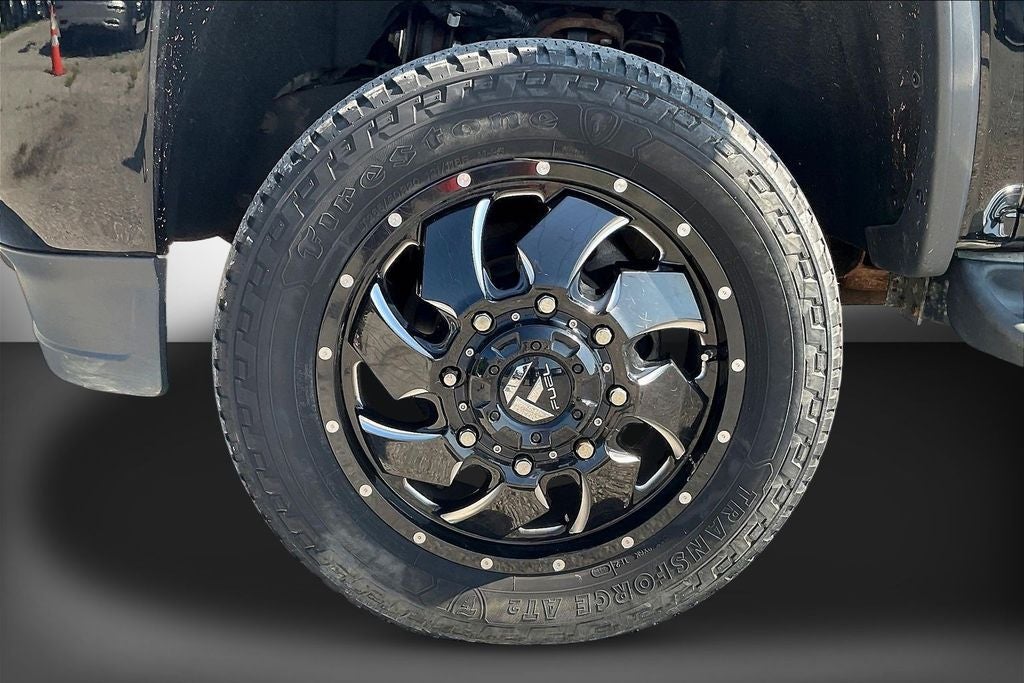

• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. (Requires 3500HD single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Tire, spare LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires 18" wheels and tires and single rear wheels. Included with (E63) Pickup Box. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheelhouse liners, rear (Not available with dual rear wheels.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color
• Bumper, rear body-color with bumper CornerSteps
• CornerStep, rear bumper
• LPO, Assist steps, chromed tubular, 6" rectangular (dealer-installed) (May be substituted with (VXJ) assist steps, LPO. (VXH) is deleted when (VXJ) assist steps, LPO is specified.)
• Moldings, bodyside, chrome

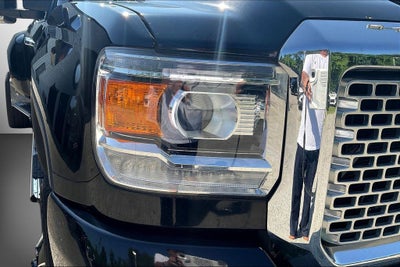

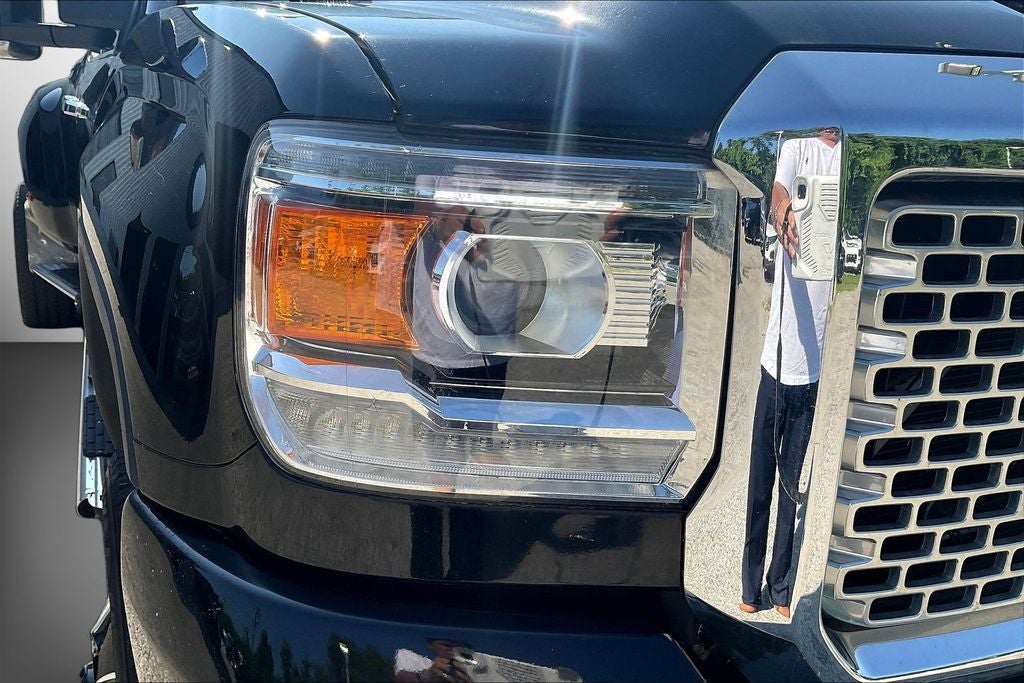

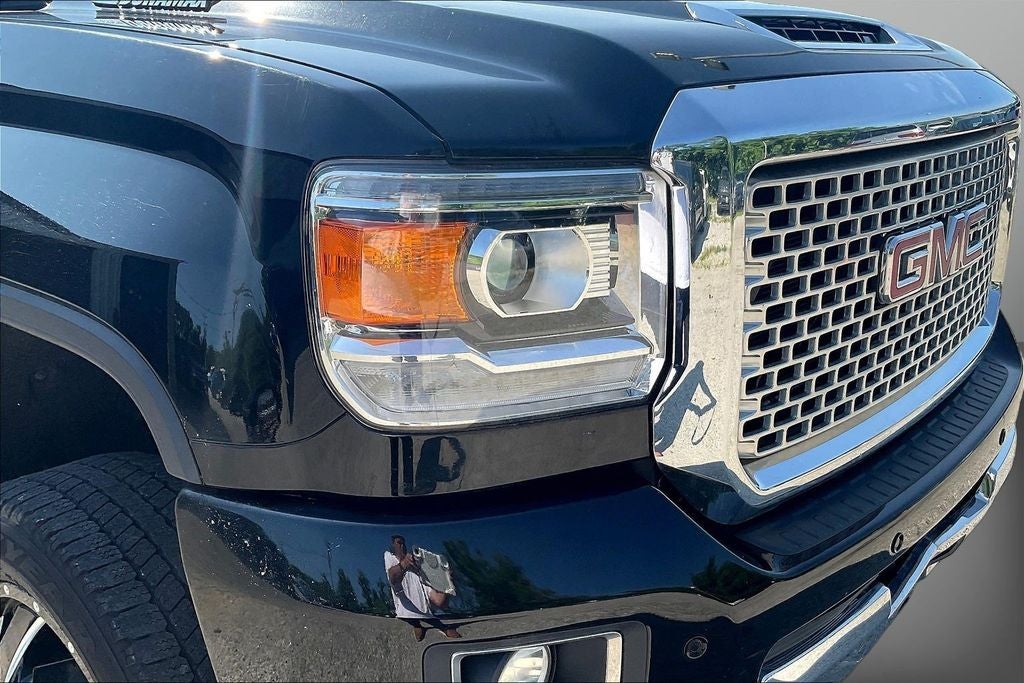

• Headlamps, high intensity discharge (HID) projector-beam with GMC signature LED lighting
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• LED Lighting, cargo box with switch on center switch bank
• Mirrors, outside heated power-adjustable vertical trailering, memory equipped, upper glass, power-folding and manual extending, chrome. Includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power-adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Window, power, rear sliding with rear defogger (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower
• Remote Locking Tailgate
• Bed Liner, Spray-on Pickup box bed liner consisting of high pressure, chemically bonded, sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. Includes embossed Denali logo on front bed wall. The textured, non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gage hole plugs and lower tie down loops. (Not available with (VZX) bed liner, LPO.)
• Cargo ties downs (4), movable upper

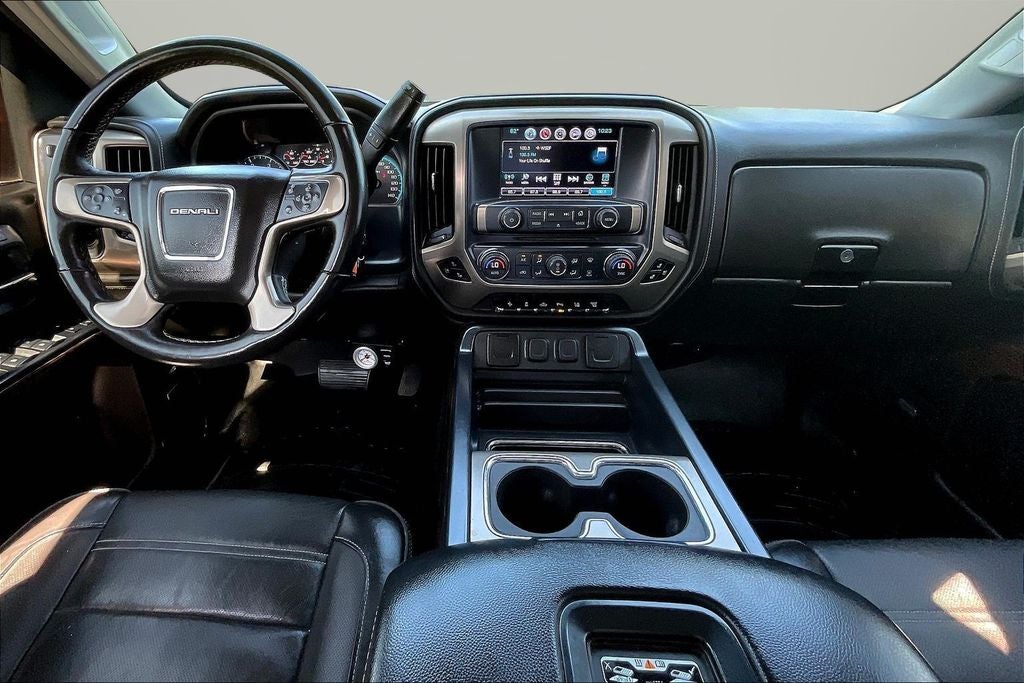

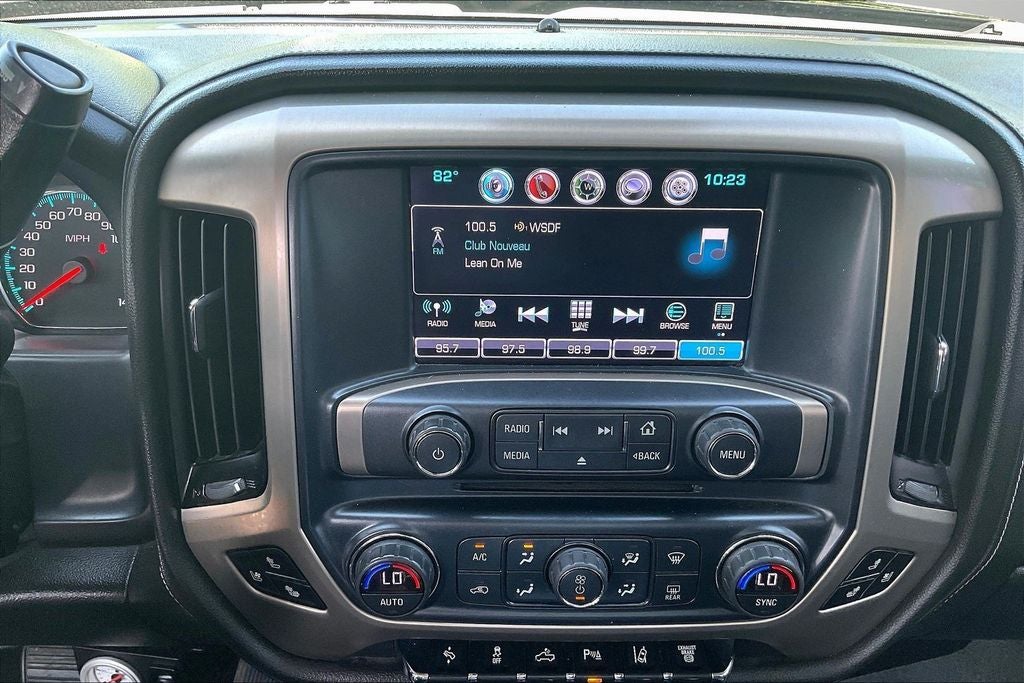

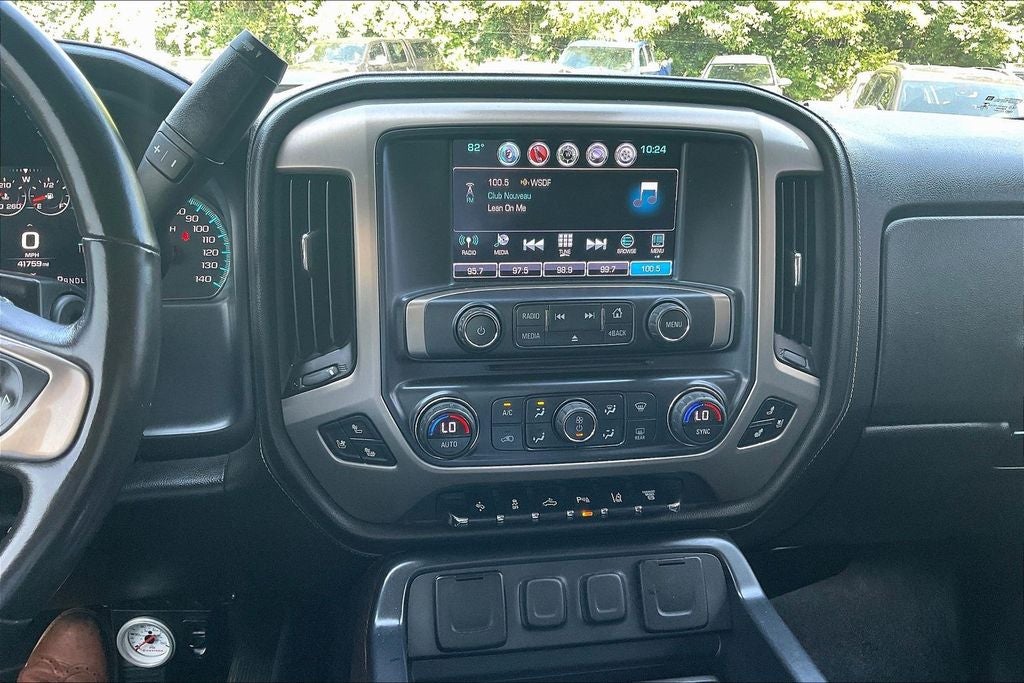

• Audio system, 8" Diagonal Color Touch Screen Navigation with IntelliLink, AM/FM/SiriusXM, HD Radio with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, advanced phone integration featuring Pandora Internet radio and voice-activated technology for radio and phone
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on nearly all 2017 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Wireless Charging (Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses.)

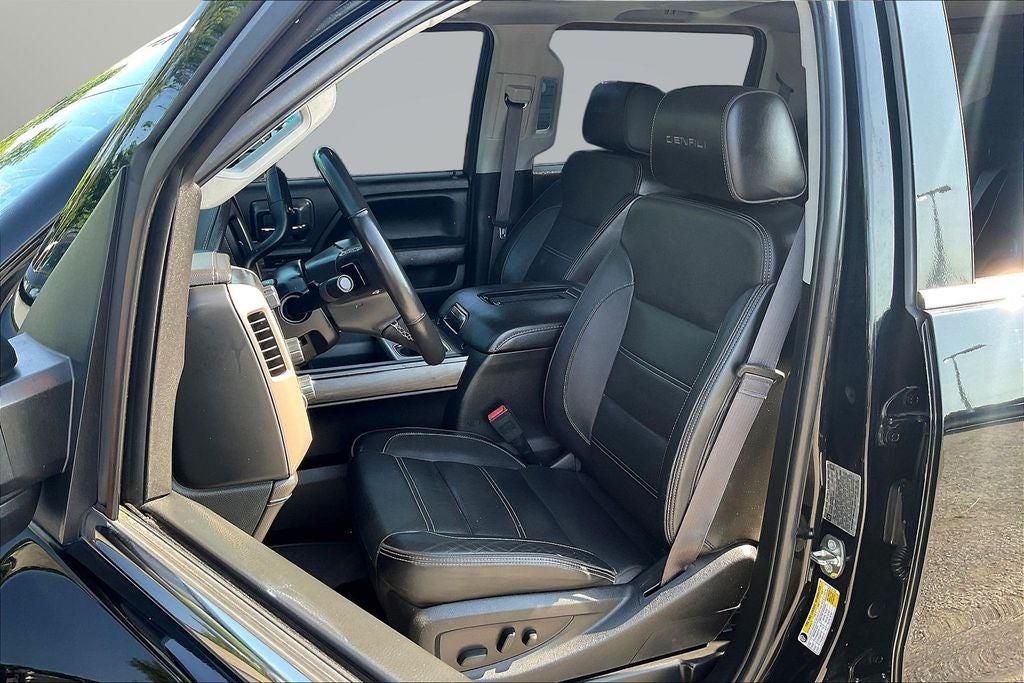

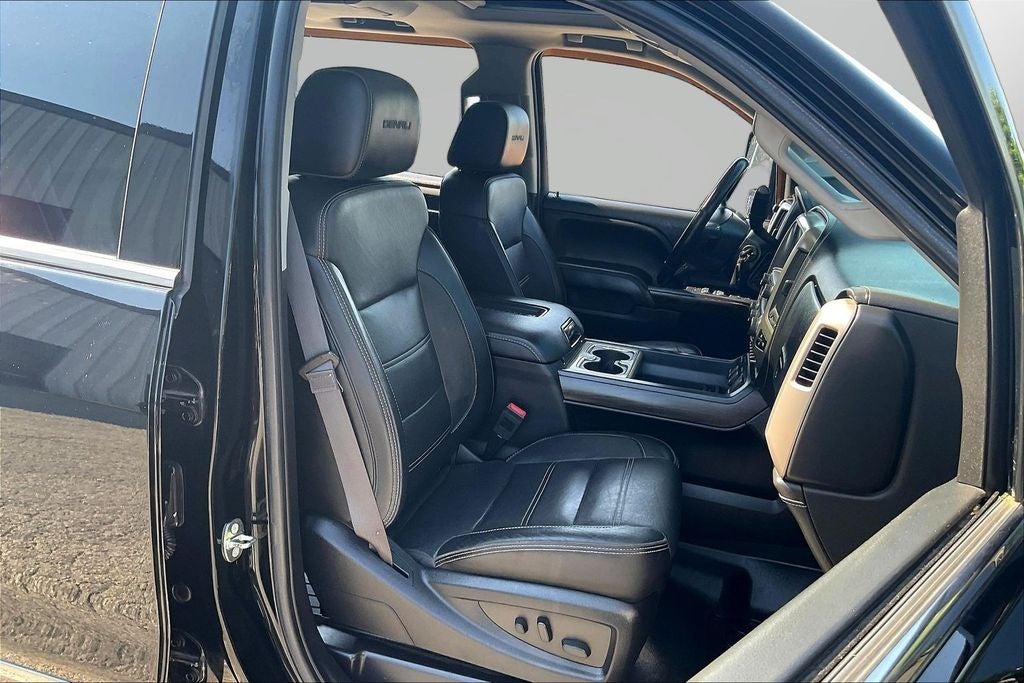

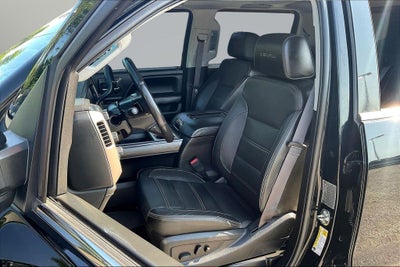

• Seats, front full-feature leather-appointed bucket with (KA1) heated seat cushions and seat backs. Includes 12-way power driver and front passenger seat adjusters, including 4-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console and storage pockets and (K4C) wireless charging
• OnStar with 4G LTE and built-in Wi-Fi hotspot connects to the Internet at 4G LTE speeds; includes OnStar Data Trial for 3 months or 3GB (whichever comes first) (Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T.)
• Seat trim, Leather-appointed front seats
• Seating, heated and ventilated perforated leather-appointed front bucket

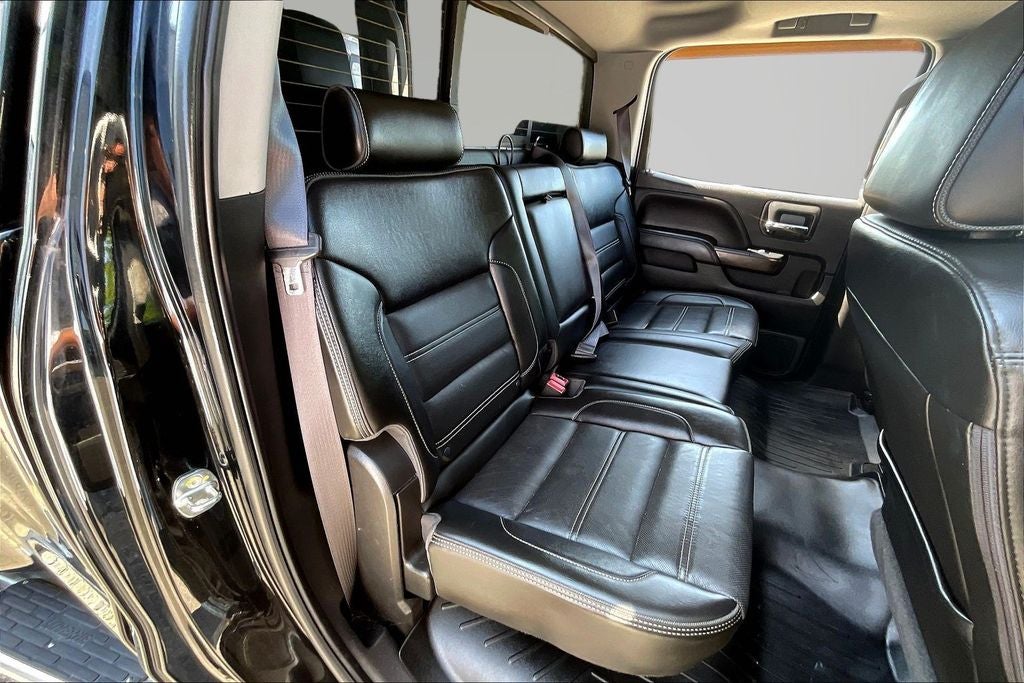

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

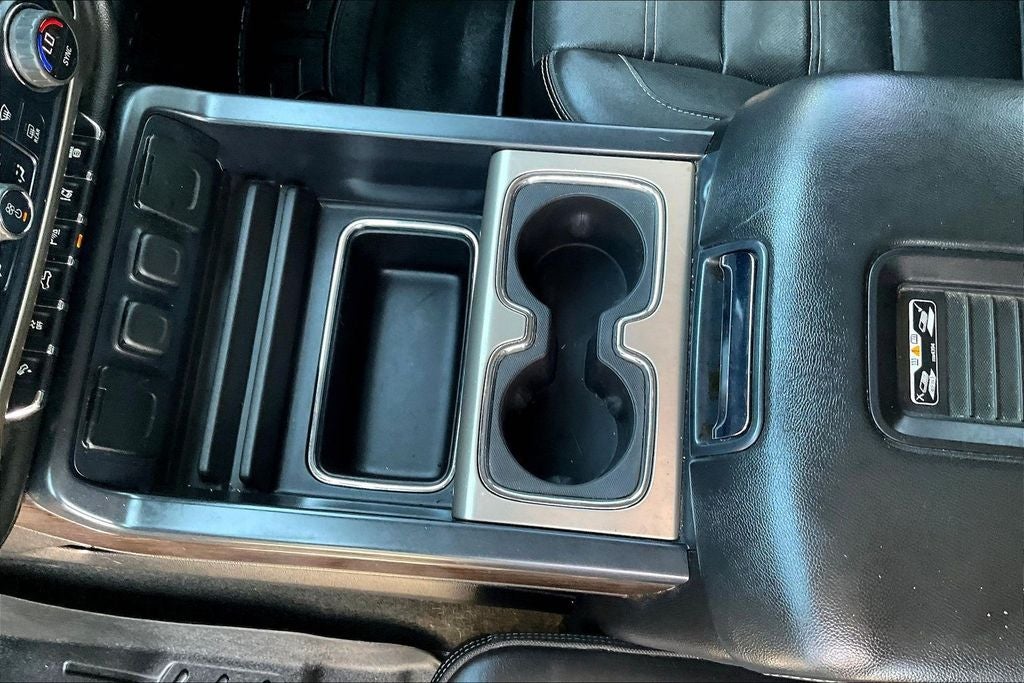

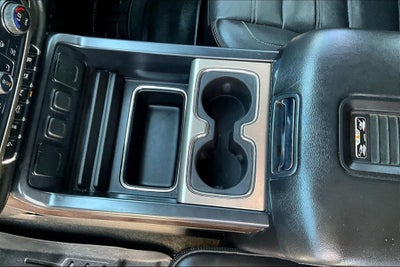

• Console, floor mounted with cup holders, cell phone storage, power cord management, hanging file holder capability and (K4C) wireless charging
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row
• Steering column, manual Tilt-Wheel and telescoping

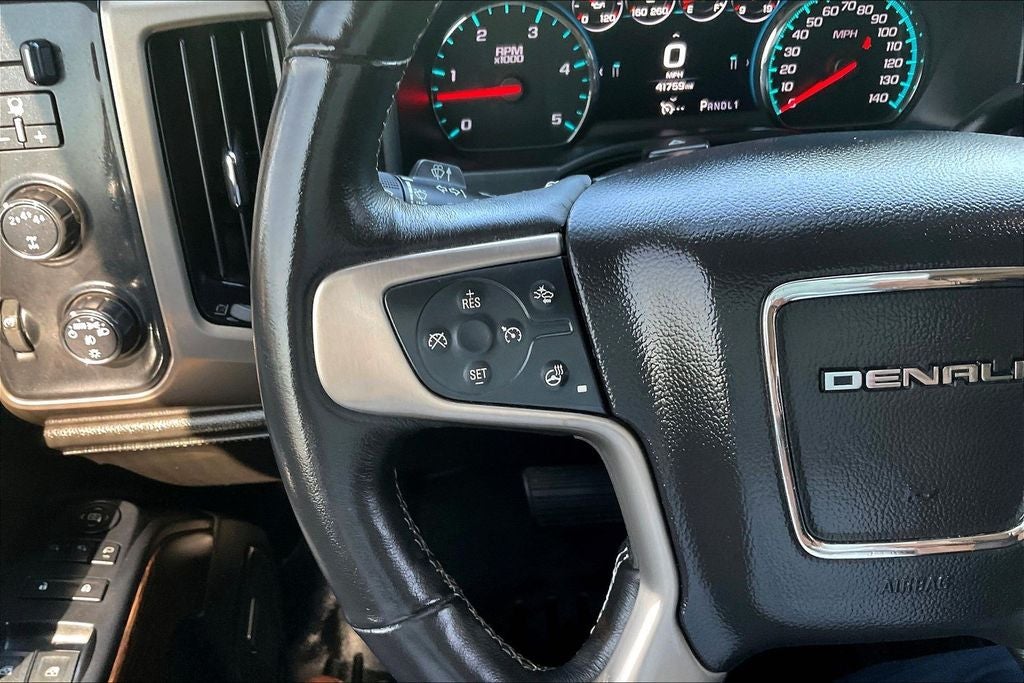

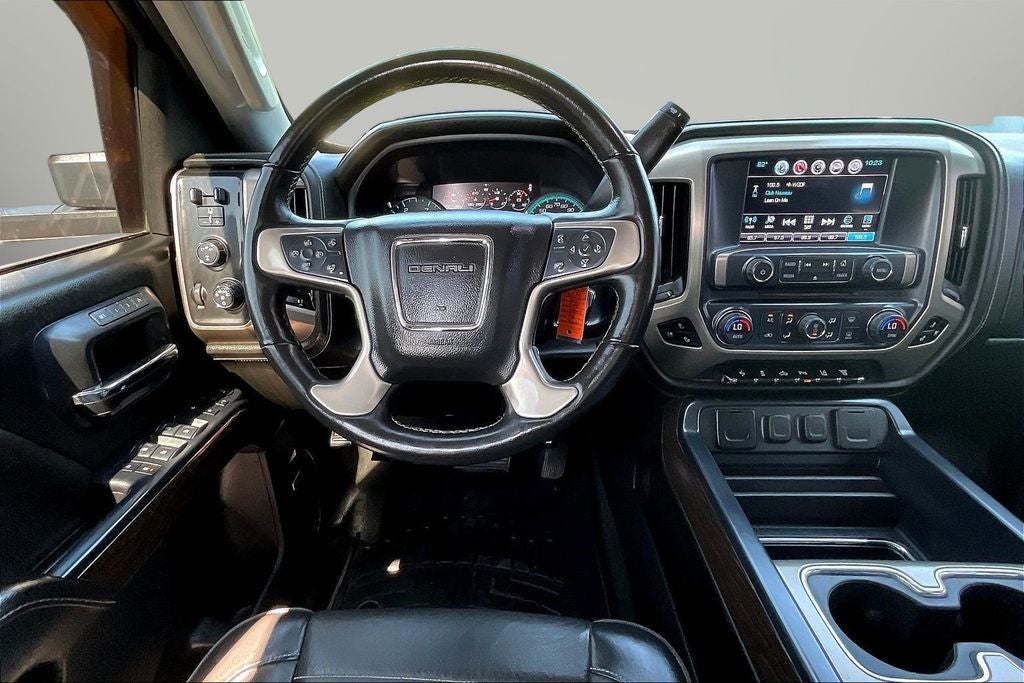

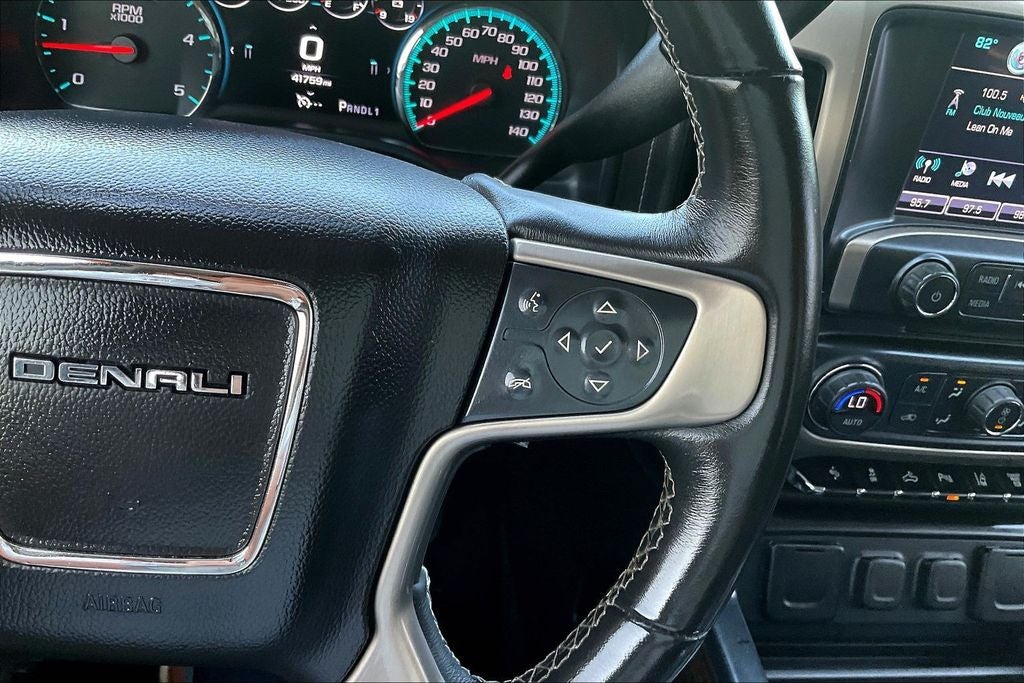

• Steering wheel, heated, leather wrapped with audio and cruise controls
• Steering wheel audio controls

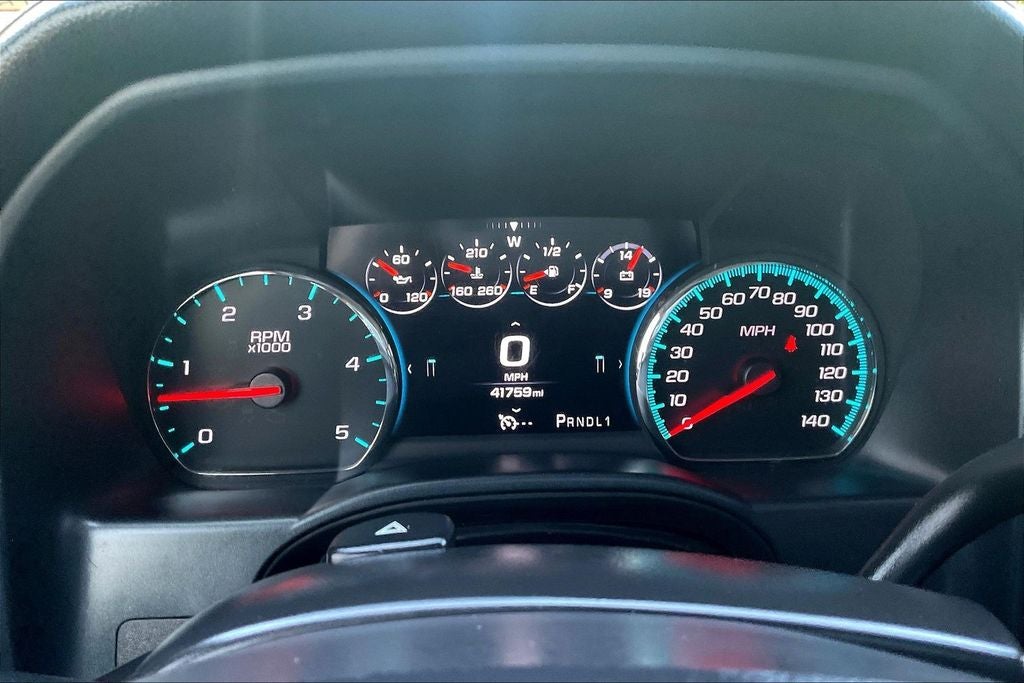

• Display, customizable driver display, 8" multi-color configurable
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry
• Remote vehicle starter system
• Pedals, power-adjustable
• Cruise control, steering wheel-mounted
• Universal Home Remote (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system, unauthorized entry

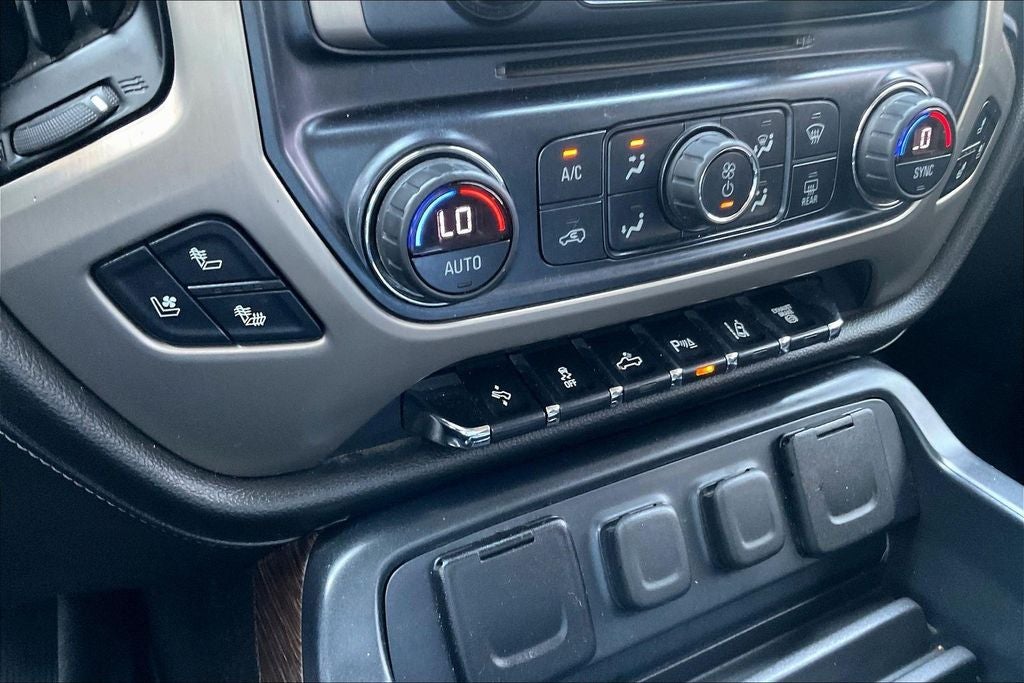

• Air conditioning, dual-zone automatic climate control
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance plan for 3 months, including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) for 6 months, including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Fleet orders receive a 6-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data.) (Retail orders receive a 3-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data.)
• Front and Rear Park Assist, Ultrasonic
• Forward Collision Alert
• Lane Departure Warning
• Safety Alert Seat

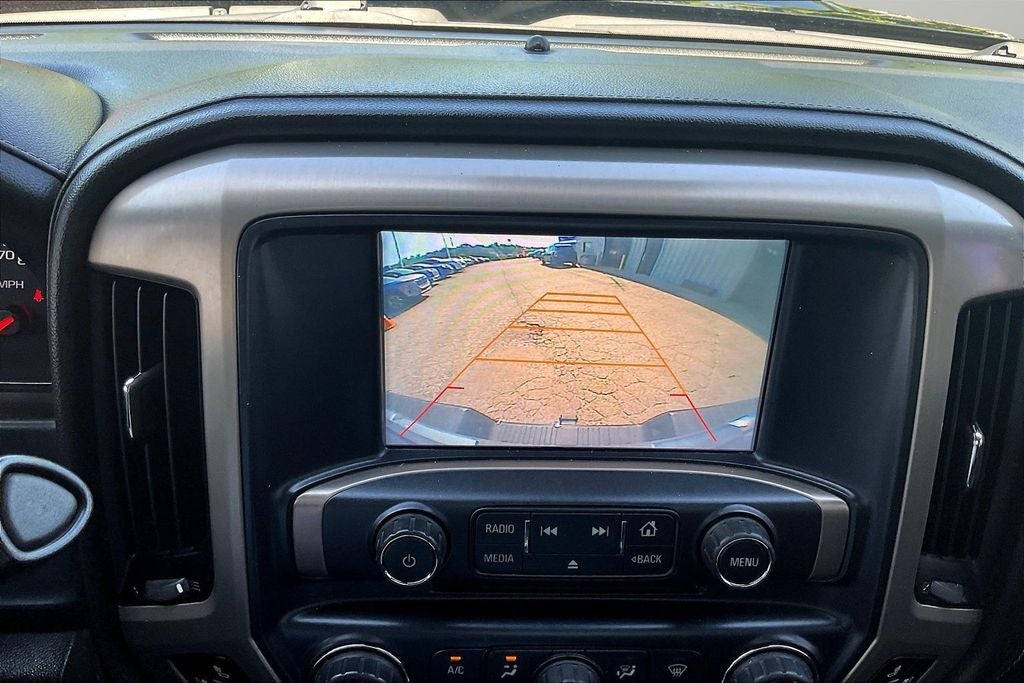

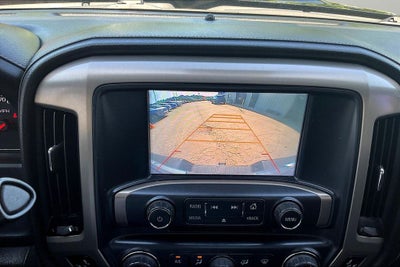

• Rear Vision Camera with dynamic guide lines
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver

DENALI PREFERRED EQUIPMENT GROUP

• includes standard equipment

AUDIO SYSTEM, 8" DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK, AM/FM/SIRIUSXM, HD RADIO

• with USB ports
• auxiliary jack
• Bluetooth® streaming audio for music and most phones
• advanced phone integration featuring Pandora Internet radio and voice-activated technology for radio and phone (STD)

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS.

• Includes 12-way power driver and front passenger seat adjusters
• including 4-way power lumbar control
• 2-position driver memory
• adjustable head restraints
• (D07) floor console and storage pockets and (K4C) wireless charging (STD)

DURAMAX PLUS PACKAGE

• includes (L5P) Duramax 6.6L Turbo Diesel V8 engine and (VQY) chrome recovery hooks
• LPO
• (MW7) Allison 1000 6-speed automatic transmission

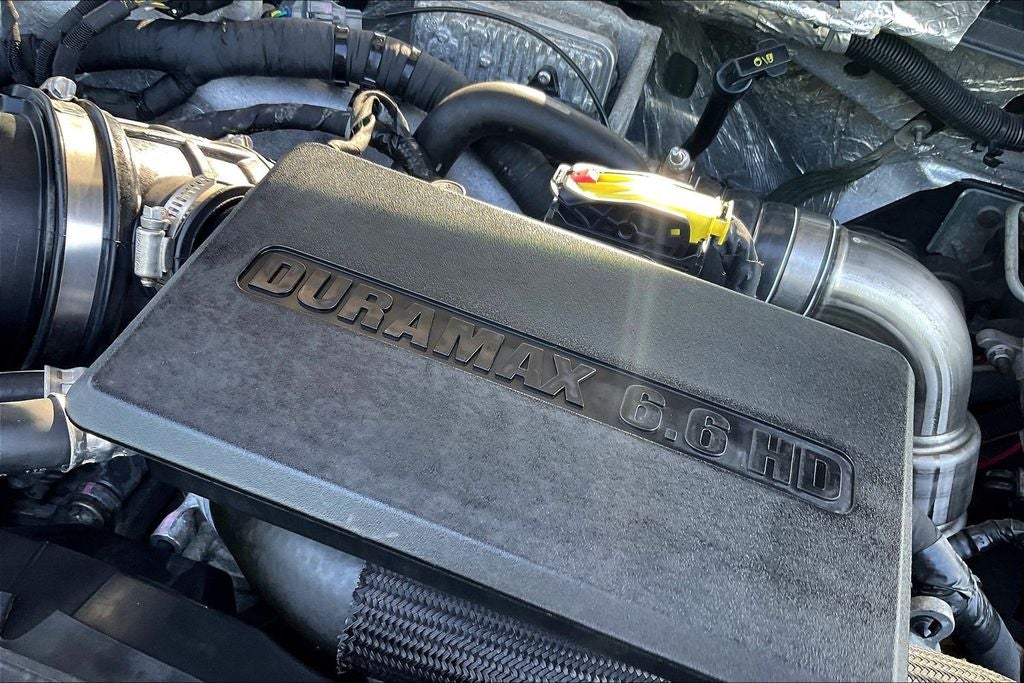

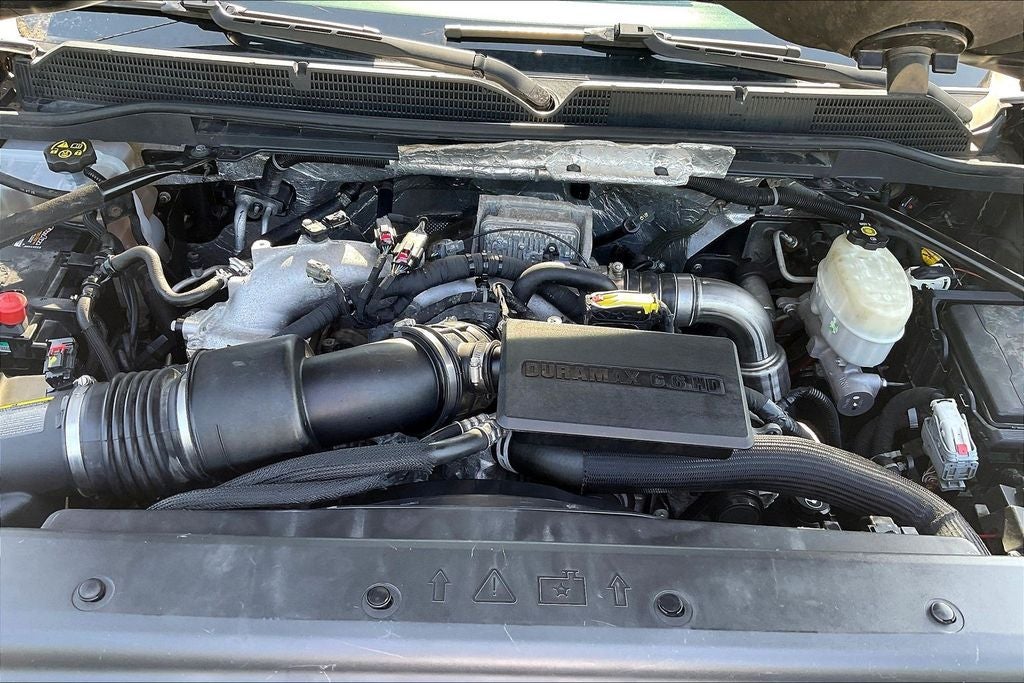

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (445 hp [332 kW] @ 2800 rpm
• 910 lb-ft of torque [1220 Nm] @ 1600 rpm) Includes capped fuel fill
• (K40) exhaust brake and (K05) engine block heater.

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

ENTERTAINMENT PACKAGE, REAR SEAT DVD/BLU-RAY PLAYER

• with 9.2 inch LCD display
• 2 sets of wireless headphones and A/V remote control

LICENSE PLATE KIT, FRONT

• Note: (VK3) deletes center lower bumper filler panel.

GOOSENECK / 5TH WHEEL PREP PACKAGE -- HITCH PLATFORM TO ACCEPT GOOSENECK OR FIFTH WHEEL HITCH.

• Includes Hitch platform with tray to accept ball and drilled box holes with caps installed
• box mounted 7-pin trailer harness (similar to (UY2) harness).

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

BRAKES, 4-WHEEL ANTILOCK, 4-WHEEL DISC

• with dual rear wheel and DuraLife brake rotors

WHEEL, 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE, STEEL SPARE.

• Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

• Preferred Equipment Group 5SA
• Duramax Plus Package
• Front Full Feature Bucket Seats
• Perforated Leather-Appointed Seat Trim
• Heated Driver & Front Passenger Seats
• Heated & Ventilated Front Seating
• Driver Alert Package
• Radio: AM/FM/SiriusXM w/IntelliLink & Navigation
• SiriusXM Satellite Radio
• Bose Speaker System
• Electric Rear-Window Defogger
• Rear Seat Entertainment Package
• Color-Keyed Carpeting Floor Covering
• Leather Wrapped Heated Steering Wheel
• Power Sunroof
• Power Sliding Rear Window w/Defogger
• Front License Plate Kit
• Ultrasonic Front & Rear Park Assist
• Chrome Recovery Hooks
• Dual 150 Amps & 220 Amps Each Alternator
• Engine Block Heater
• Underbody Shield
• Standard Suspension Package
• High Idle Switch
• Gooseneck/5th Wheel Prep Package
• Hitch Package (LPO)
• Remote Vehicle Starter System
• OnStar Guidance Plan For 3 Months
• 110-Volt AC Power Outlet
• Rear Vision Camera
• Manual Tilt-Wheel/Telescoping Steering Column
• Front Halogen Fog Lamps
• Deep-Tinted Glass
• Electronic Shift Transfer Case
• Power Windows
• Rear 60/40 Folding Bench Seat (Folds Up)
• Remote Locking Tailgate
• Remote Keyless Entry
• Color-Keyed Carpeted 1st & 2nd Row Floor Mats
• Chrome Bodyside Moldings
• Dual-Zone Automatic Climate Control
• Floor Mounted Console
• Auto-Dimming Inside Rear-View Mirror
• Driver & Front Passenger Visors
• Chrome Power-Adjustable Heated Outside Mirrors
• Chrome Door Handles
• Power Adjustable Pedals
• Exhaust Brake
• Wireless Charging
• 150 Amps Alternator
• EZ-Lift & Lower Tailgate
• Single-Slot CD/MP3 Player
• HD Radio
• Forward Collision Alert
• Lane Departure Warning System
• Universal Home Remote
• 8" Multi-Color Customizable Driver Display
• Steering Wheel Audio Controls
• Unauthorized Entry Theft-Deterrent System
• Front Frame-Mounted Black Recovery Hooks
• Front Body-Color Bumper
• Rear Body-Color Bumper w/Bumper CornerSteps
• OnStar w/4G LTE
• Trailering Equipment
• 4-Wheel Disc Brakes
• Apple CarPlay/Android Auto
• Emergency communication system: OnStar Guidance
• Auto High-beam Headlights
• Exterior Parking Camera Rear
• Premium audio system: IntelliLink
• AM/FM radio: SiriusXM
• Compass
• 7 Speakers
• High-Intensity Discharge Headlights
• Auto-dimming Rear-View mirror
• Ventilated front seats
• Variably intermittent wipers
• Turn signal indicator mirrors
• Trip computer
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed-sensing steering
• Speed control
• Security system
• Remote keyless entry
• Rear window defroster
• Rear step bumper
• Rear seat center armrest
• Rear reading lights
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Pedal memory
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Memory seat
• Illuminated entry
• Heated steering wheel
• Heated front seats
• Heated door mirrors
• Garage door transmitter
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Brake assist
• Bodyside moldings
• Automatic temperature control
• Alloy wheels
• Adjustable pedals
• ABS brakes
• Voltmeter
• Tachometer
• Navigation System
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150 & 220
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9375
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 13025
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 31300
• Gross Combined Wt Rating (lbs): 25100
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 20000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1340
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 22700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5675
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3325
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4250
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9375
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9375
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 X 1.57
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 13.98 X 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QQO
• Front Tire Order Code: QWF
• Rear Tire Order Code: QQO
• Rear Tire Order Code: QWF
• Spare Tire Order Code: ZQO
• Front Tire Size: LT235/80R17E
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT235/80R17E
• Rear Tire Size: LT265/70R18E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 5600
• Front Tire Capacity (lbs): 4800
• Rear Tire Capacity (lbs): 9375
• Rear Tire Capacity (lbs): 7050
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 95.98
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): - TBD -
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.86
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.27
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
